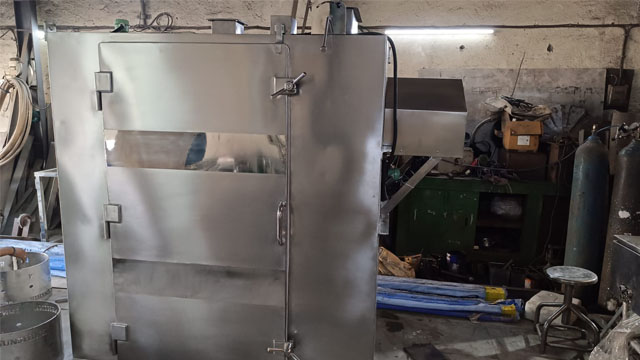

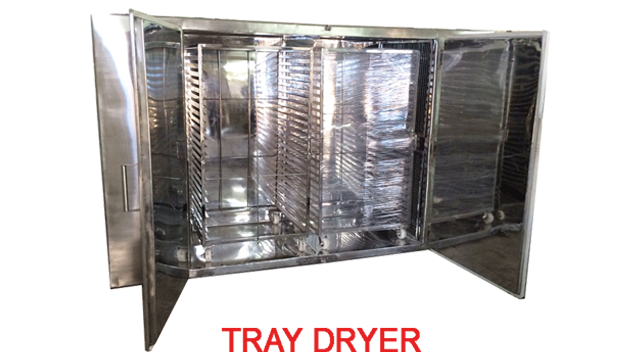

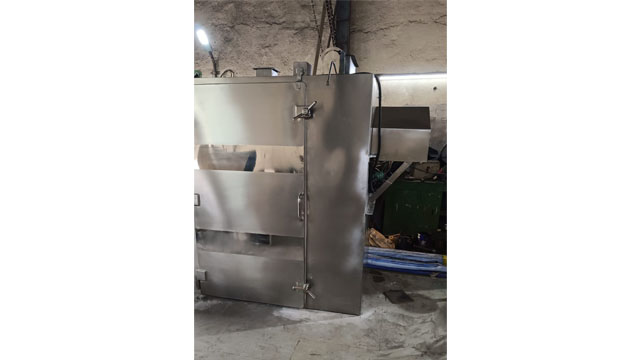

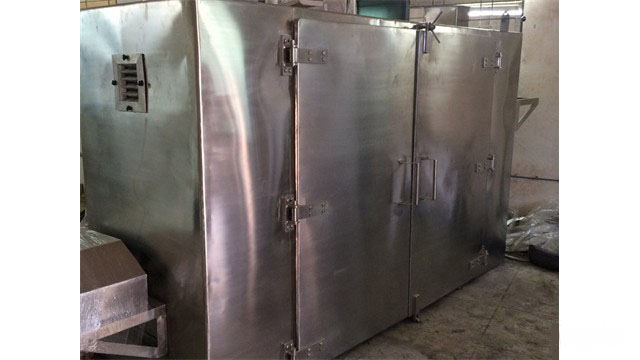

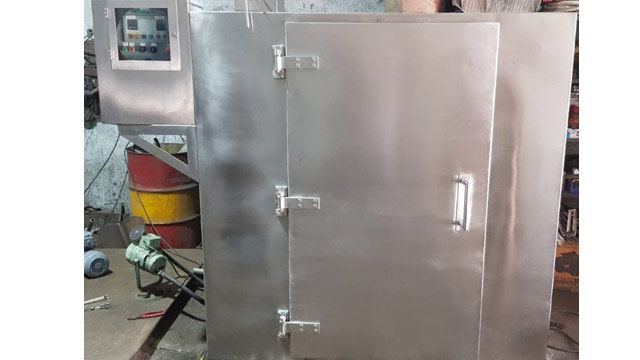

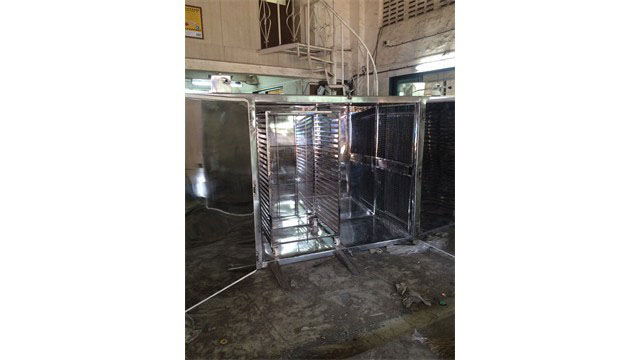

TRAY DRYER
We offer a precision engineered range of tray dryer specially designed for uniform circulation of hot air in the drying chamber. Tray Dryer is robust in construction built with Stainless Steel sheets and internally angles are used to reinforced the whole sheet body. The external sheet of tray dryer will be of S.S. 304 and internal chamber will be of S.S. 304 / S.S. 316. The internal structure is insulated with minimum 50mm thick Glasswool insulation and cladded with S.S. sheets. The dryer is having a fresh air inlet through 20 Micron filters and an adjustable air outlet flap. The door provided at front is explosion proof and is locked with the help of spring loaded ball latches and Neoprene rubber gasket to prevent leakages with suitable pressure. The maximum temperature attained inside the tray dryer will be 100°C and will be indicated and controlled through DTIC.
Salient features
- All contact parts made of SS 316 as cGMP standard
- Design for uniform circulation of hot air in the drying chamber
- Electric & Steam heating system
- Fresh air inlet and outlet air flow can be adjusted with damper control valve

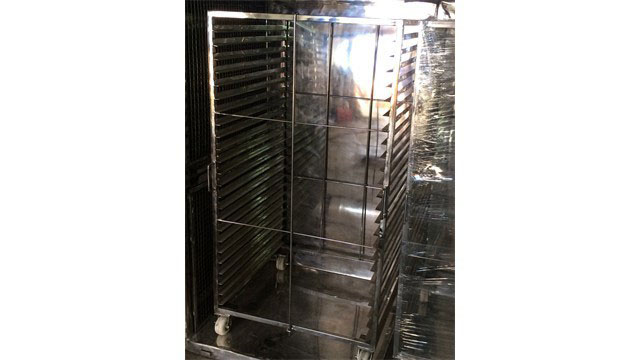

- Trays are placed on the movable trolleys provided with castors.
- Available in different models with options for 12, 24, 48 and 96 trays.
- Easy accessibility of impeller for cleaning.
