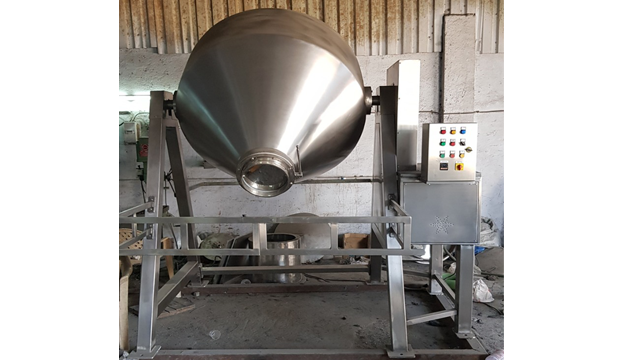

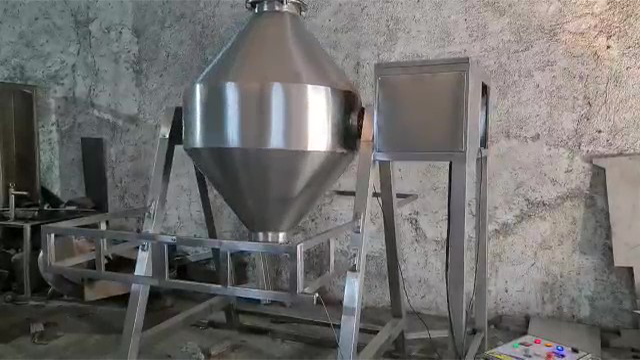

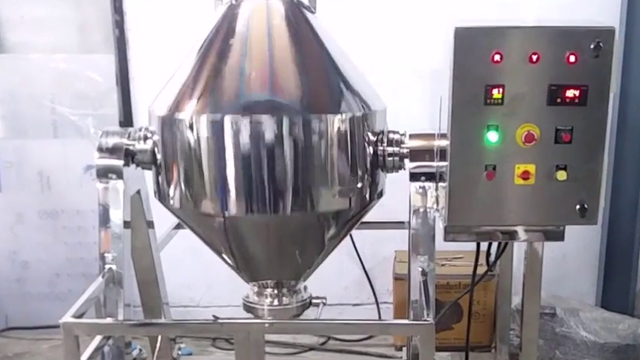

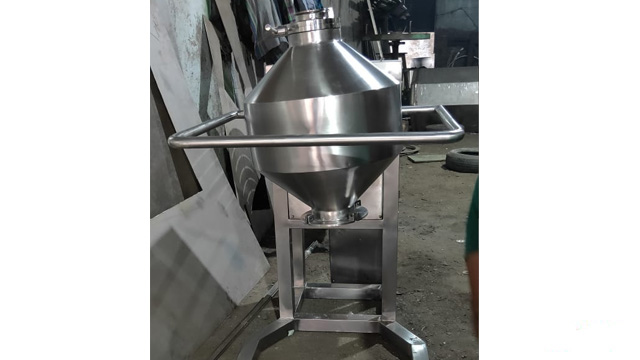

DOUBLE CONE BLENDER
Application
"KPM PHARMA "Double Cone Blenders are used for mixing. Lubricating and blending in Pharmaceutical, Nutraceutical, Food, Chemical, cosmetics, pesticide and other Allied industries.
Process
The Double shape blenders have long two corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the double cone blender drum. The double blender is tumbles the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity.
A double cone blender is excellent pharmaceutical equipment that has two ends lengthened to enhance the mixing and tumbling of dry powder in the industry. This double cone blender is used to obtain uniformity during the processing of the components at a better speed. This double cone blending machine observes standard CGMP directives, hence is suitable for ideal granular as well as homogenized mixing of different clusters into a single volume at a rapid pace.
Salient features
- Double Cone Blender Machine Design is as per cGMP.
- All Product Contact parts SS 316 / 316L & Non Contact parts SS 304.
- Available Capacity model in Double cone blender 5 kg to 5000 kg batch size.
- Enclosed rigid drive with reduction gear box and motor.
- The conical shape of both ends enables uniform mixing and easy discharge.
- Suitable size of butterfly valve at one end of the double cone provided for material discharge.
- Handhole & manhole with Openable lid provided at other end of the cone for material charging & Cleaning.
- Food grade rubber gasket will be used on both end of the double cone.
- The product container rotates on variable RPM with help of VFD.
- Safety guards made from SS304 pipes provided in front and back of the machine with limit switch.
